Skyworks is pleased to introduce Si86Sx Digital Isolators.

The new Si86S6x state-of-the-art digital isolators include several outstanding and unique features. These devices are robust, with a 6.0 kVrms isolation barrier, and have low-power and sleep modes for conserving power. They have CMOS thresholds, Schmitt trigger inputs, a deglitch filter option and high CMTI for over-all high noise immunity. This product family also has specially designed options for SPI and QSPI bus isolation, as well as Wi-Fi compatible options for greater flexibility. Data rates up to 150 Mbps are supported, and devices achieve typical propagation delays of to 10 ns.

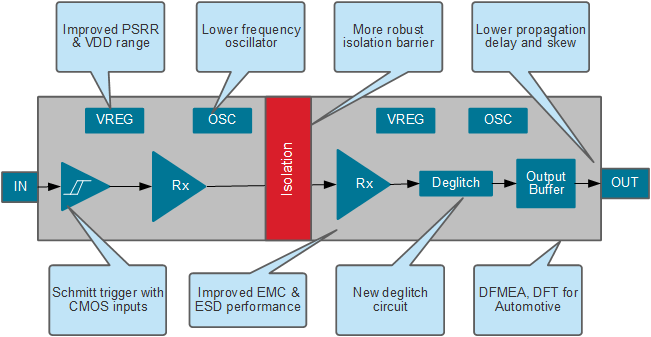

Si86Sx Digital Isolators New and Improved Features & Specifications

• Highly robust isolation barrier
  • Greater than 10 kV surge immunity
  • 6.0 kVrms/ 1 min max rating
  • 2121 Vpeak working voltage
  • 8 kV IEC 61000-4-2 contact discharge withstand
• Enhanced EMC for automotive applications
• AEC-Q100 qualified, DFMEA, DFT
  • Automotive production flow, fault and test coverage
• High CMTI: 100 kV/µs
• Wide VDD range: 2.25 V – 5.5 V
• CMOS inputs instead of TTL for noise immunity
• Deglitch to prevent false trigger from noise
• Low power, sleep & Wi-Fi compatible modes
• Pin-to-pin compatible with Si86xx

Key Applications

On Board Chargers (OBC)

dc-dc inverters

Isolated CAN buses

Key Applications

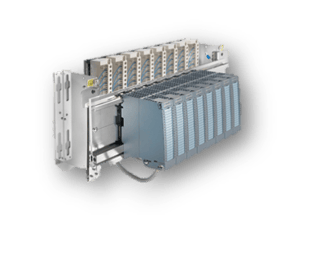

Programmable Logic Controllers (PLC)

Solar Inverters, Motor Control

Isolated RS485 / Fieldbus

EV charging stations

Key Applications

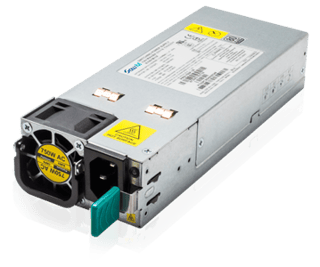

Server / Cloud Power Supplies

Base station Power Supplies

Crypto mining / Gaming power supplies
